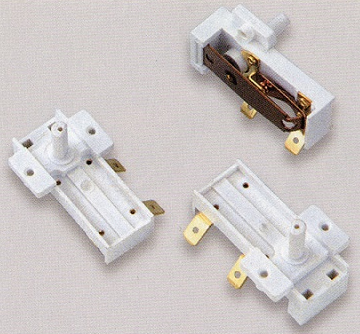

BIMETAL THERMOSTAT

Type: "KST501"

Application
Heat radiator, Heater, Fan Heater, Quarts Heater, Oven.

Termostato Bimetallico Tipo: KST 501

Technical Specification
  • Working Temp.: 0~55°C;   0~70°C;   0~80°C;   0~95°C;   0~105°C;   0~120°C;   0~160°C;   0~280°C;
  • Cut-out Temp. Tolerance: ±5K; ±8K; ±10K; ±15K;
  • Differential: 1~4.5K;   1~6K;   1~10K;   1~15K;   1~20K;   1~25K;   1~30K;   1~35K;
  • Electric Ratings: AC250V 5A/10A, 50~60Hz resistive load
  • Max Ambient Temp.: 90°C; 120°C; 180°C
  • Shaft Rotating Angle: 300°
  • Contacts Life: 30.000 cycles
  • Contacts Form: S.P.S.T.
  • Standards: According to JB/T3751-1997; GB14536.1~1998
