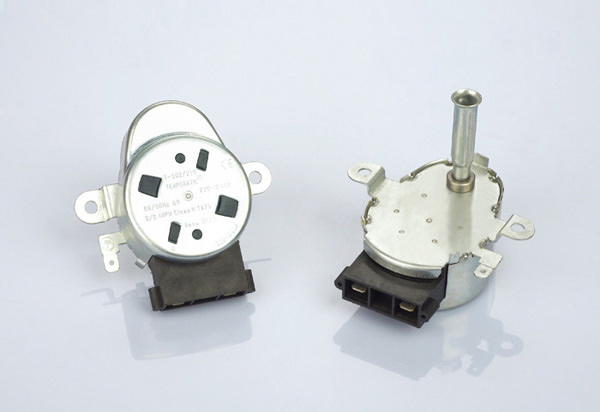

GRILL MOTOR

Type: T-102

GRILL MOTOR


GENERAL FEATURES:

  • Rated voltage: 110-120 / 220-240V
  • Frequency: 50/60Hz
  • Temperature: 125°C
  • Input power: 4W
  • Output speed: 2.4 RPM (110V)/2RPM (220-240V)
  • Output torque: at 20°C 140Ncm
  • No-load starting voltage: 90/154V
  • Insulation resistance: =100MO
  • Noise: =45dB
  • Insulation class: H
  • Rotation direction: CW/CCW
  • Special shaft on request.
