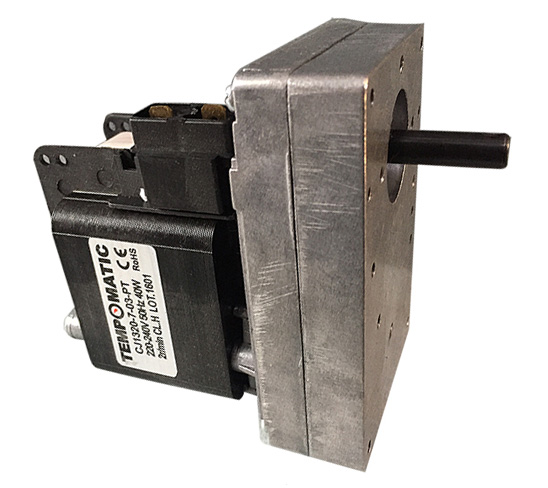

SPECIFICATION
1. TYPE SHADED POLE TYPE INDUCTION
MOTOR
2. RATING:
2-1 VOLTAGE: AC220-240V 50Hz
2-2 PHASE: 1Ø
2-3 POLE: 2P
2-4 RATING: CONTINUOUS
3. NO LOAD CHARACTERISTICS:
3-1 CURRENT I0: 0.29A±15%
3-2 INPUT POWER P0: 32W±15%
3-3 SPEED n0: 2±0.3r/min
3-4 STARTING VOLTAGE:  176V
4. INSULATION:
4-1 INSULATION CLASS: H
4-2 INSULATION RESISTANCE: 50MOHMS
WITH DC500V MEGGER
4-3 DIELECTRIC STRENGTH: AC1800V
FOR 1 SECOND
(CUT-OFF
CURRENT:3mA)
5. NOISE: LESS THAN 50 dB(A) AT 30cm
AWAY FROM THE MOTOR

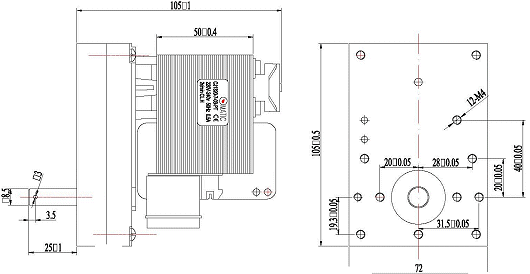

6. CONSTRUCTION:
6-1 DIRECTION OF ROTATION IS C.W.
SEEING FROM THE OUTPUT SHAFT
SIDE
6-2 THE END PLAY: NOT MORE THAN 1.0mm
|
