CONTAORE

Tipo: CONTAHK46

contaore meccanico

CARATTERISTICHE GENERALI

Highlights

  • price competitive meter
  • excellent quality
  • long lifetime
  • different bezels for different cut-outs
  • mani mounting versions
  • all necessary approvals
  • your branding available

Applications

  • gen-sets
  • compressors
  • pumps
  • medical equipment
  • control panels
  • air conditioning

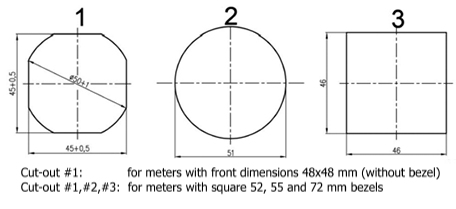

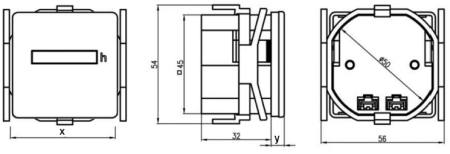

Panel cut-outs

x (mm)
y (mm)
Mounting hole
48x48
6
1
52x52
8
1,2 or 3
55x55
8
1,2 or 3
72x72
8
1,2 or 3

contaore meccanico




Type: CONTAHK30

Highlights
- Price competitive
- Excellent quality
- Long lifetime
- Different models for different markets
- All necessary approvals
- Your branding available

Application
- Gen-sets
- Compressors
- Pumps
- Medical equipment
- Control panels
- Air conditioning


contaore elettronico


Mechanical data
Front dimension 36 x 24 mm (standard)
Display
DC: 5 integers, 2 decimals
DC: 6 integers, 1 decimals without reset
Digit height


4 mm

Digit color integer: white on black
decimal:
50 Hz - red on black
60 Hz -white on black
Counting range AC: 99999,99 h , DC: 99999,99
Reading accuracy Ac: 1/100 h (36 sec)
Weight ca. 32 g
Housing color standard black
transparent on request
Bezels for 36 x 24 mm 48x24, 48x48, 54x29, 55x55, Ø 58, Ø 72, 72x72 mm
Mounting options D - DIN housing
E - 48x48 DIN case
G - front 36x24
R - front 40,6x27,5 mm (1,60x1,08") with reainer
S - 2 - screw front 52x26 mm (2,05x1,03")

Electrical data
Operating voltage 24, 48, 60, 110, 120, 220, 230, 240,
400 VAC ± 10%, 50 or 60 Hz
6-12, 12-36, 36-80, 110, 220 VDC ± 10%
Current consumption AC: max. 8 mA
DC: max. 9 mA
Accuracy AC: ± 0,02%
DC: ± 0,002%
Connection flat pin 6,3x0,8 with screw
flat pin 6,3x0,8

Ambient conditions
Operating temperature AC: -25°C .. +70°C
DC: -10°C .. +55°C
Storage temperature AC: -40°C .. +70°C
DC: -20°C .. +70°C
Relative humidity max. 80% at +25°C
Protection IP40 front
IP67 front (transparent housing)
IP67 totally sealed housing
IP00 terminals
Approvals CE Mark
UL E171200
RoHS compliant
