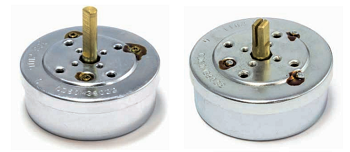

MECHANICAL TIMER

Type: "CD360"

TECHNICAL CARD OF SIGNAL
CLOCK CD
:
  • Running time: 15-30-60-120 min.
  • Time tolerance: ± 3%
  • Charge direction: hourly
  • Signal duration: 4 seconds
  • Ambient temperature: 125°C
  • Couple at 80°C:
    charge max 5 kg cm
    discharge max 4 kg mm
  • Friction couple rserve: 0,3 kg cm. min.
  • Charges number: 4.000
  • Rotation angle: 360°
  • Other shaft on request
