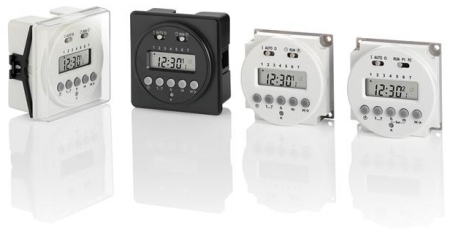

Type: 884-V

APPLICATION

All electric appliances and other equipment which require a weekly recurring program of switching cycles, which, however, can differ on individual weekdays.

FUNCTIONS

- Time of day in 24 hour or 12 hour format (am/pm)
- 7 day program, optional 24 hour program only
- 16 switching points (8 x ON , 8 x OFF)
- Up to 112 switchings per week by forming program blocks
- Reset function easily deletes all settings simultaneously
- Override function skips the next switching
- Variotime Single: 1-channel version with 1 relay
- Variotime Twin: 2-channel version with 2 relays switching independently
- Also available with 16 A contact rating
- Shortest switching interval 1 minute
- Mode selector switch for permanently ON or OFF to override the automatic program
- Separate selector switch for programming mode
- Separate buttons for setting time and weekday

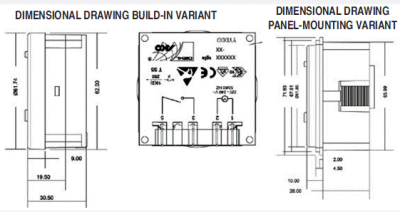

- Build-in housing with 30.5 mm depth or panel-mounting 72 x 72 x 42.5 mm

TECHNICAL DATA

- Nominal voltage 12 V AC/DC, 24 V AC/DC, 110 V AC, 220-240 V AC
- Nominal frequency 50/60 Hz
- Suitable for protection class I and II equipment
- Live parts must not be accessible after installation!
- Max. admissible ambient temperature -10°C…+55°C
- Contact rating Variotime Single
  1 x 10 (4) A/250 V AC in build-in housing
  1 x 16 (2) A/250 V AC in panel-mounting enclosure on/off relay, optional
  with changeover relay
- Contact rating Variotime Twin
  2 x 5 (2) A/250 V AC
  2 x on/off relay, optional 1 x on/off and 1 x changeover relay
- Stand by power consumption < 0.5 W
- Switching program
  16 programmable switching points (8 x ON and 8 x OFF)
  Shortest switching interval 1 minute
  A maximum of 112 switchings per week can be achieved blocks of weekdays   with identical switching points:
  Monday…Friday       (1+2+3+4+5)
  Monday…Saturday   (1+2+3+4+5+6)
  Monday…Sunday     (1+2+3+4+5+6+7)
  Saturday/Sunday    (6+7)
- 24 hour program only: 16 switching points within 24 hours
- Connections to mains supply and relays via tab terminals 6.3 x 0.8 mm in
  compliance with EN 61210
- Position of terminals
- Build-in housing: radial, South or North, optional East or West
- Panel-mounting enclosure: axial, South
- Approvals: VDE-ENEC and UL-CSA (technical conditions apply)

ACCESSORIES FOR PANEL-MOUNTING VARIANTS

2 each fixing brackets material no. 413271110 for assembly behind panels
Transparent cover material no. 413271185 optionally available
