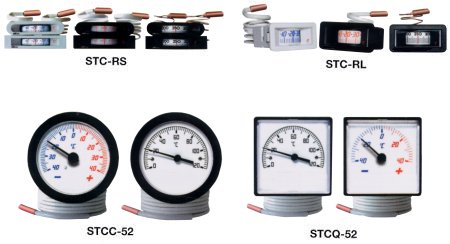

BULB AND CAPILLARY THERMOMETER

Type: STC


Thermometer with liquid expansion probe, particularly suitable for insertion on equipment for boilers, appliances, refrigerators and restaurant services. Instrument is available with different ranges (from -40°C to +350°C), shape (round, rectangular, square) and colour.



capillary thermometer

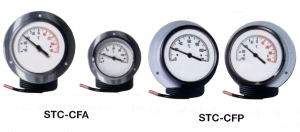

Thermometer liquid filled sensing bulb with front flange (FA) or back flange (FP). Particularly suitable for refrigerators, boilers, catering equipment and household appliance.

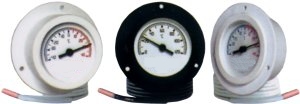

Type: STC-CFR


STC-CFR


Thermometer with liquid expansion probe, available with special plastic body and frame, transparent glass, reversible flange for wall or built in application. Particularly suitable for insertion on equipment for boilers, appliances, refrigerators and restaurant services.






Type: STCC-37


SPECIFICATIONS
  • Case: reinforced nylon, standard colours black or white, other colours on request, case dia 37 mm
  • Frame: 40 mm
  • Fixing system: moulded-in elastic tabs.
  • Maximum casing withstanding temperature: 70 deg C
  • Window: shatterproof clear plast
  • Capillaries: PVC-coated copper; standard lenghts 0,5 - 1 - 1,5 metres, other lenghts on request
  • Bulb: copper
  • Sensing element: Beryllium spiral tube
  • Dial: printed plastic dial. Custom designed dials on request
  • Pointer: Plastic
  • Scales: 0/120?C for heating, -40/+40?C for refrigeration; other scales on request
  • Accuracy: ? 3% of full scale value.

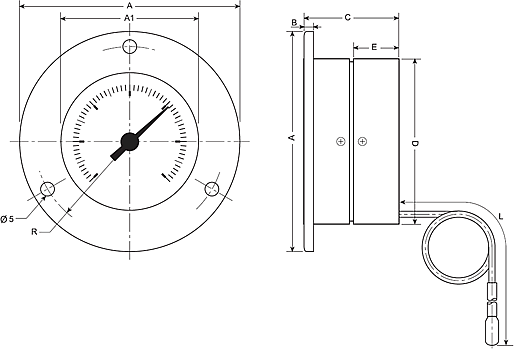

Type: STC2460
panel analogic thrmometer


SPECIFICATIONS
  • Case: ABS, standard colour black, other colours on request, case dia 63, 80, 100 mm
  • Mounting: surface mount or panel mount, flange for surface or panel mount interchangeable
  • Window: shatterproof clear plastic
  • Capillaries: PVC-coated copper; standard lengths 1 - 1,5 metres, other lengths on request
  • Bulb: copper
  • Sensing element: Beryllium spiral tube, adjustable at back . Dial: printed plastic dial. Custom designed dials on request
  • Pointer: plastic
  • Scales: 0/120?C for heating, -40/+40?C for refrigeration; other scales on request
  • Accuracy: ? 3% of full scale value





BIMETAL THERMOMETER

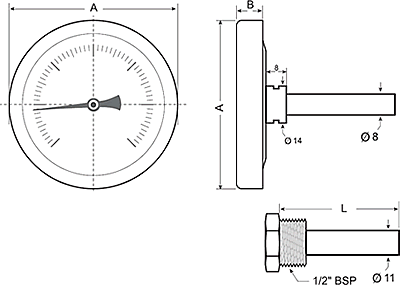

Type: MT23

bimetal thermometer

SPECIFICATIONS
  • Dial size: 43, 63, 80, 100 mm
  • Case: Zinc plated steel
  • Bezel: Stainless steel
  • Window: glass
  • Bulb: Copper allow, adjustable at end
  • Pocket: Brass, friction at axial of thermometer case, fixing by screw for option
  • Pocket length including thread: 30, 40, 50, 63, 100, 150 mm etc
  • Connection: 1/2"BSP center back
  • Temperature sensor: bimetal coil
  • Range: -40+40 deg C, -30+50 deg C, -20+60 deg C, 0-120 C, high temperature up to 600 deg C for option in Stainless Steel bulb and pocket for option
  • Accuracy: 2% of full scale





Type: TK281

TK 281 SPECIFICATION
  • Embedment bulb and tube thermometer
  • Temperature: 20÷120°C/0÷250°C
  • Capillary: 1000mm
  • Bulb: Ø 6mm
  • Dimensions: 25x58x55
  • Width: mm 58
  • Height: mm 25
  • Depth: mm 60





GAS FILLED DIAL THERMOMETER
Type: STC500

bimetal oven and fridge thermometer


APPLICATIONS:
STC500 gas filled dial thermometers are inert gas filled instrumants of universal use for built-in application through flush mounting.
It is mostly user for plant, machinery, tank apparatus construction and food industries.


SPECIFICATIONS:

Dial size: 60 mm
Case: 304 stainless steel case and crimped ring
Window: Glass window
Tube: Copper alloy
Movement: brass
Capillary:AISI 304 Stainless steel, lenght upon request.
Bulb: AISI 304 stainless steel, standard size dia 8 x 100 mm.
Dial: in aluminium, white back ground, black marking.
Pointer: in aluminium, black finish
Standard ranges:-40+40°C, -20+60°C, 0-80°C, 0-120°C, 0-150°C, 0-200°C, 0-250°C, 0-300°C, 0-350°C, 0-400°C, 0-500°C, 0-600°C.
Mounting: flush mounting , with AISI 304 stainless steel U-clamp or front flange
