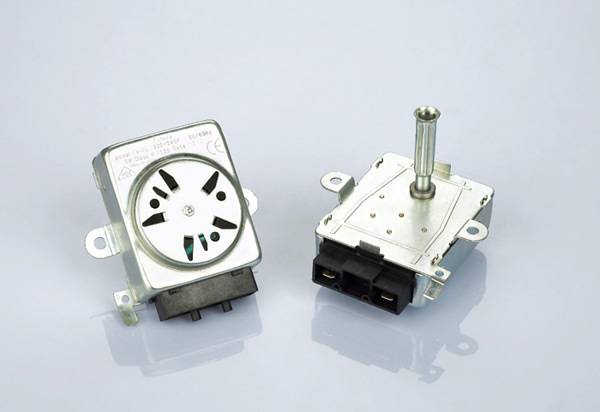

GRILL MOTOR

Type: T-163=5W

grill motor - barbecue motor

GENERAL FEATURES:

Rated voltage: 110/220-240V
Frequency: 60/50Hz
Temperature: 125°C
Input power: 5W
Output speed: 2.4 RPM (110V)/2 RPM (220-240V)
Output torque: at 125°C 176Ncm
No-load starting voltage: 84/154V
Insulation resistance: =100MO
Noise: =45dB
Insulation class: H
Rotation direction: CW/CCW

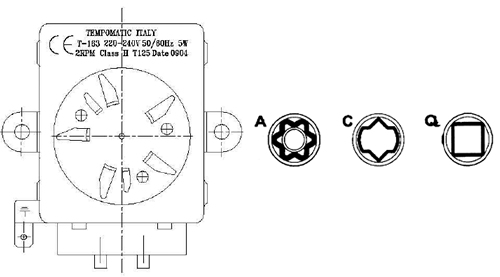

Special shaft on request.
