TIMERS ACCESSORIES

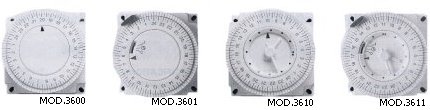

Type: "3600 / 3601 / 3610 / 3611"

Programmable timer 36. series

OPERATING INSTRUCTION

Time switch module DESCRITION
The time switch MODUL controls any electrical equipment.
INSTALLATION
The device is internally protected against interferences by a safety circuit. However some especially strong electromagnetic fields may affect its performance.
ASSEMBLING
In pane!
CONNECTION
According to a connection scheme.


TECHNICAL CHARACTERISTIC
Supply: 230V AC 50Hz
Switching capacity: 16(4)A/250V~
Own consumption: 1,8VA
Accuracy: Depending on the network
Type of sphere: Daily: 96 tappets
Operating mode: Synchronous motor
Operating temperature: 85°C
Contact: AgCdO One pole switch
Protection type: Il according to EN 60 335 when correctly assembled


PROGRAMMING
Shift all the tappets upwards and shift downwards the corresponding tappets to the desired connection times, in which the 2-3 contact will stay closed.
SETTING
Revolve the sphere to the right so that it meets with present time. In those models with clock hands they also must meet with present time.
MANUAL SWITCH
In those models having: 3 position
- permanently on (2-3 closed)
- automatic operating
- permanently off (2-3 closed)



DIMENSIONS

Porgrammable timer 36. series
  Time switch module
