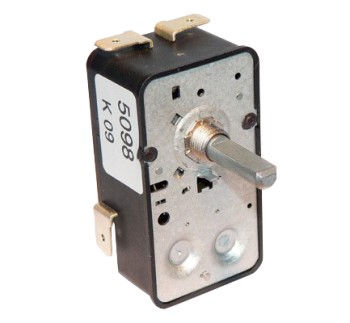

MECHANICAL TIMER

Type: "G"

GENERAL FEATURES:

Movement: machanical, with balance
Running time: 30 sec. - 4 min. (angle 180°) 1-5-7-15-30-45-60-120 min. (angle: 330°)
Rating: 16 (4) A 250 V
10 (2) A 380 V
Temperature: T. 125°C
Switch: single pole - double pole - changeover
Contact: Silver/cadmium
Connection: Faston (AMP) 6,3
Mounting device: central nut (or screws)
Approval: IMQ - SEMKO - CEE - VDE - UL - CSA. Double isolation, classe II
Other shafts on request
