MECHANICAL TIMER

Type: C53

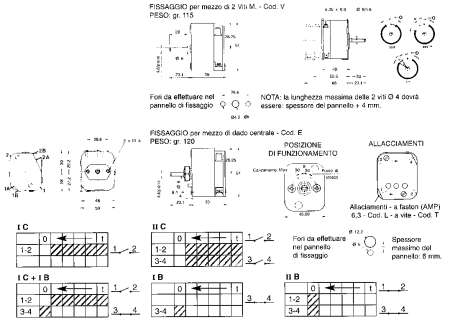

Mechanical timer type C53 switch single pole, double pole
GENERAL FEATURES:

  • Movement: mechanical with balance
  • Running time: 6 -12 - 24 hours
  • Ratings: 16 (4) A 250 V
    10 (2) A 380 V
  • Temperature: T 125°C
  • Switch: single pole
               double pole
               changeover
  • Contact: Silver/cadmium
  • Connection: Faston 6,3 x 0,8 mm
  • Mouting device: 2 screw M.4 o M.3 or central nut
  • Packing: in cartons containing 30 or 240 pieces
  • Approvals: UTE-VDE-ASE-SEMKO-BEAB-CSA
