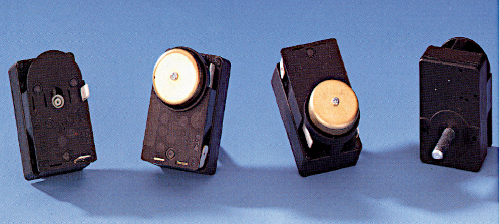

MECHANICAL TIMER

Type: C20

Timer double poles type C20 versatile mechanical runback

SPECIFICATIONS:
  • Conform with EN 60 730-1, BS 3955, UL and CSA.
  • Contact ratings:
    16 (3) A 250 V ~ (N.O)
    10 (3) A 250 V ~ (N.C)
  • Number of contacts: 1 or 2
  • Terminals: 6,35 X 0,8 mm
  • Minimum Cycles: 10000 cycles
  • Ambient Temperature Range: -10° ÷ 125°C
  • Wind-up angle: 288°
  • Timing ranges available (in minutes): 5-7-15-30-60-90-120
  • Options: Manual position, contact orientation (lateral or manual), end of cycle bell.
FEATURES:

This versatile mechanical runback timer is a available for a wide variety of applications thanks to its small physical dimensions, reliability and variations.

APPLICATIONS:

Deep fat fryers, Ovens, Cooker ranges, Mini ovens, Toasters.
Subject to change without notice.

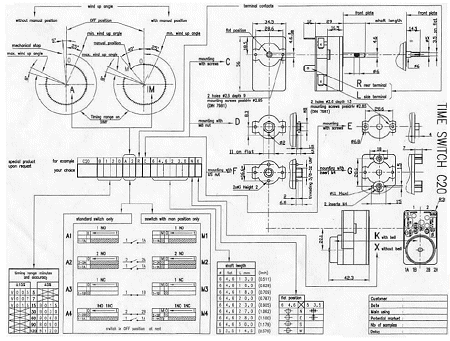

Click on the image to enlarge it
