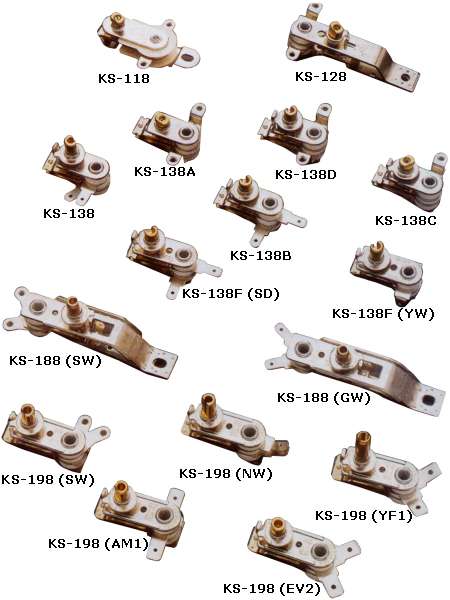

| Type:
"KS108" |
| |
Application
When properly empoyed, this thermostat is suitable for heavy loading (large
electric current) appliances such as dry/steam iron, waffle maker, hot tray,
electric stove, cooking oven, kitchen wear and heaters...etc. |
Specification
Function:
|
Single pole, the contact opens when the temperature is reached |
 |
Standard rating
|
[UL & CUL] 125V ac 16A
[VDE & CE] 250V ac 16A |
|
| Number of Automatic Cycles for each Automatic Action: |
[UL & CUL] 30,000 cycles
[VDE & CE] 30,000 cycles |
|
| Maximum temperature: |
[All standard] 250°C |
|
| Temperature setting range: |
[All standard] 0 - 250°C |
|
| Tolerance of operation range: |
+/- 10°C |
|
| Switching differential: |
10-30K depending on mounting and design |
|
| Turning range: |
~300° - limited turning ranges |
|
| Speed of temperature change: |
>1K / min. |
|
Connection
Push-on terminal (for receptacle 4,8 mm or 6,3 mm) and M3 screw
terminal are alternative. |
| |
Dimensions
Lenght of control shaft and angle of terminal plates are depended on customer
requirement.
All dimensions are only for reference. |
| |
 |
|
