SECURITY THERMOSTAT

Type: CO/CS/CB

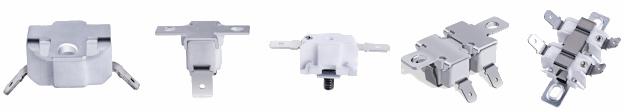

Ceramic Thermostat with snap-action disk: regulator, automatic controller, limiter

APPLICATIONS
The very compact ceramic-bodied thermostats are designed for current loads of up to 16A and have a wide range of applications. These thermostats can be used in regulator applications to maintain a constant temperature (normally closed or normally open); they can be used as limiters (normally closed) with mechanical resetting. The thermostats are used everywhere where overheating protection is required in a minimum of space.
  • domestic appliances
  • heating appliances
  • heat exchangers
  • electrical equipment
  • hotplates


MODE OF ACTION
The thermostats respond to a fixed temperature that is determined by a snap-action bimettalic disk. The action of the bimetallic disk is mechanically transmitted to a bridge contact via a transfer pin, so that the electrical circuit is either open or closed, depending on the state of the bimetallic disk.


  1= Housing (Ceramic)
2= Heat-conducting plate
3= Bimetal element
4= Connection terminals
5= Rivet
6= Switching pin
7= Bridge contact
8= Spring
9= Cover


Switching performance
CS
CO
16 A 250 V
6000 switches
10 A 250 V
30000 switches
CB 16 A 250 V
1000 switches


Maximum speed of temperature change 20 °K/min
Differential gap 30° - 60°C
(smaller values on request)
Maximum switching temperature 350 °C
Electr. insulation >2800V
Design As per EN 60730
  • micro-contact-breaker
  • type 1
  • Contact material Silver alloy (gold-plated on request)
    Approval SEV, VDE

    It is responsability of the customer to verify the suitability for the intended use. We can provide no guarantees in this regard. However, we will be happy to advise you.
