| Type:
"AM01" |
| |
|
AM01 FOR COIL WINDINGS MOTORS TRANSFORMES
BALLASTS

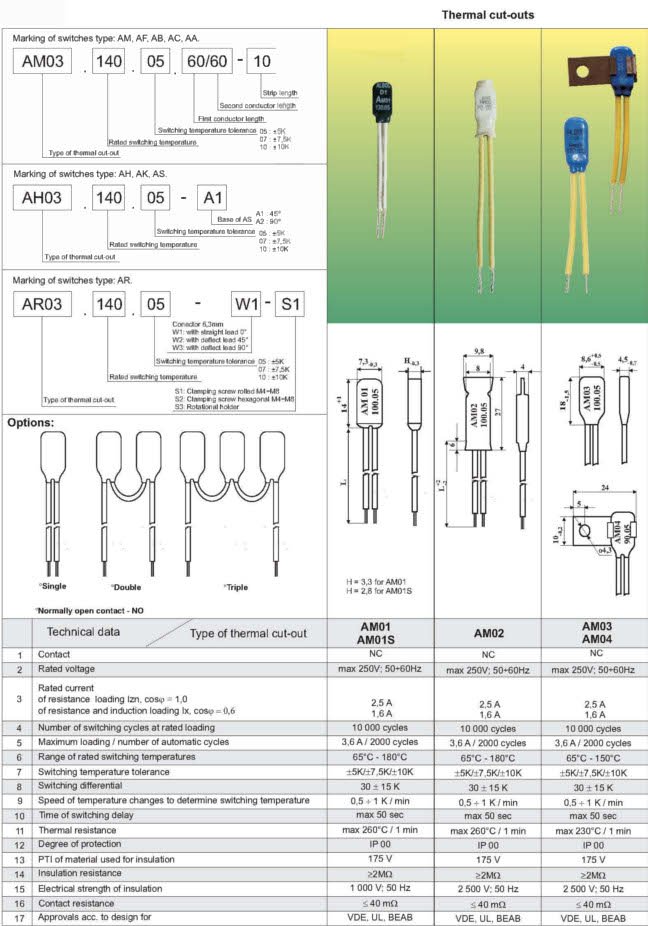

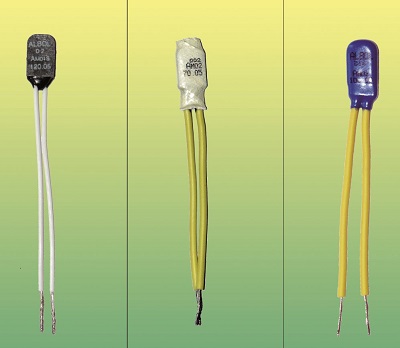

Motorprotector
|
| |
 |
|
The 5x5 mm size bimetal snap action disc opeartes an electric contact.
It breakes or makes within a temperature range from 50°C to
160°C with a differential of 15 to 45 degree. The housing is
of thermosetting epoxy and therefore withstands mechanicals stress
and peak temperatures.
Ratings are 2.5 (1.6) A 250 V AC at 10.000 oper. Max. current is
4 A at cosγ = 1. The housing is sealed for impregnation together
with the windings.
Standard terminals are 2 silicone lead wires 0.25 mm2
of 60 mm lenght. 0.6 dia bare copper wire with a pitch of 5 (5.08)
mm are available as well as specified wiring according to the drawings.
An alternate type with reinforced contacts (AM06) breaks 5 (3.2)
A 250 V AC.
|
| Electrical ratings: |
Rated Voltage |
250 VAC, 50 - 60 Hz |
| |
Load |
2,5 A cos
= 1,0 (In) |
| |
|
1,6 A cos
= 0,6 (Ix) |
| |
Maximum load |
4,0 A cos
= 1,0 |
| Electrical strength of the insulation: |
|
1,25 kV, 50 Hz. |
| Temperature range: |
|
+50°C to 160°C |
| Working temperature of the output leads: |
|
-60°C o + 180°C |
| Temperature tolerance: |
|
±5°C to ±10°C |
| Contact system: |
|
Normally closed |
| Hysteresis zone: |
|
From 15 upto 45°C below the temp of release |
| Resistance of the unit: |
|
<50 mΩ |
| Life cycle at nominal load: |
|
10,000 cycles |
| Sealing strength: |
|
IP 34 has no addional coating |
| Approval: |
|
BEAB CENELEC VDE |
|
 |
