PANEL THERMOMETER

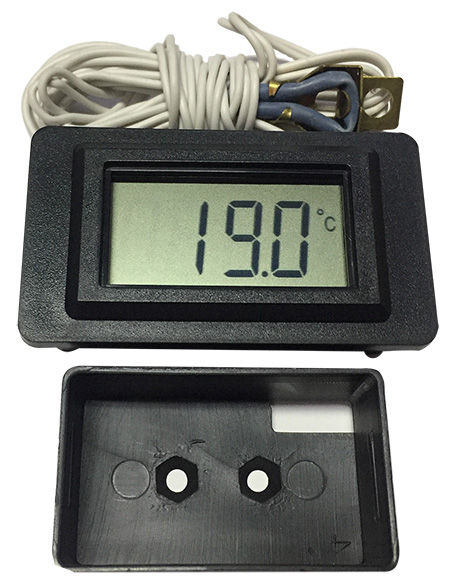

Digital thermometer LCD
Type: "T-2919/-50+70°C & T-2920/0+150°C"

T 2919

GENERAL FEATURES:
  • Fixing snap-in
  • Battery 1x1,5V "G13/A76"
  • Voltage: 3V
  • Resolution of display 0,5°C/1°F
  • Accuracy ±1°C
  • Measurement 7/sec.
  • Sensor: 1,5 meter wire polycarbonate sensing probe
  • Approval: CE
  • Frame: hole in the panel mm 26x58
  • Thermometer: mm 26x44



Specifications

Measurement Range 50°C to 70°C / -58°F to 158°F

Accuracy ±1°C / ±1.8°F over full range

Sampling Time (second) 1, 2, 5 & 10 selective (default 5 sec.)

Low Battery indication Display flashing

Display Resolution 0.1 between - 19,9° to 199,9° otherwise 1°

Display Digit Size 12 mm (H) x 6.5 mm (W)

Sensor Dimensions Ø 7x3 mm (Ø 5 mm at metal portion)

Sensor Cable Length 150 cm

Unit Size 48(L) x 28,5(W) x2(D) mm/frame portion
47(L) x 26(W) x13(D) mm/mounting portion

Battery 1.5 Voltx1pc, Size LR44 or equivalent

Ambient Temperature 0°C to 40°C/32°F to 104°F
