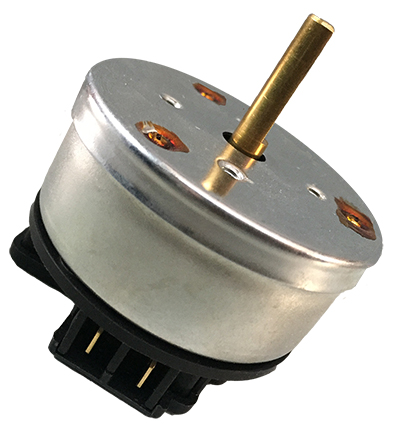

Mechanical time switch with bell

Via Marconi, 14-16
20090 TREZZANO Sul Naviglio (MI) ITALY
Tel. 02 4455138 - 02 48401828 - Fax 02 4453823


OUR PRODUCTS:

TIMERS
- Mechanical timer
- Synchronous timer
- Electronic timer
- Timers accessories
- Programmable timer
- Digital timer
SIGNAL CLOCKS
- Mechanical timer
- Table kitchen timer
- Table digital timer
- Panel digital timer
THERMOSTATS
- Bulb and capillary    thermostat
- Security thermostat
- Bimetal thermostat
- Electronic thermostat
- Room thermostat
WATER HEATING ELEMENT
  - Heating element
  - Anode
THERMOFUSES
THERMOMETERS
- Panel thermometer
- Electronic thermometer
- Bimetal thermometer
- Houseold thermometer
- Bulb and capillary    thermometer
HYGROMETERS,
HYGRO- THERMOMETERS
- Digital
- Panel
- Bimetal hygrometer
WEATHER STATIONS
LAMPHOLDERS FOR OVEN
- Ceramic lampholder
LAMPS FOR OVEN AND FRIDGE
HOT PLATES

FIRE IGNITERS

GASLIGHTERS PIEZOELECTRIC
MOTORS
- Grill motor
- Accessories roasting spit
- Syncronous motor
- Electric motor
AXIAL FANS
SWITCHES, PUSH BUTTONS
- Switch
- Switch for fridge
MICROSWITCHES
ROTARY SWITCHES
LIGHT INDICATORS
PLUG, SOCKET,
FUSEHOLDER
CABLES,
SELFLOCKING CHOCKS
PORCELAIN TERMINALS
HOURCOUNTS
ENERGY REGULATORS
CLOCKS
- Quartz clock movement,   hands
- Fit-up clock
- Digital panel clock
- Wall clock
- Led clocks
- Alarm clock
ALARMS






Electrical Specifications
Rating 16(6)A 125/250V A.C.
  1/3 HP 250V A.C.
  1/8 HP 125V A.C.
Switching Mechanism V3 Micro Switch
Electrical Life 100,000 cycles
Expectancy at 10A 250V A.C. resistant load
No of Poles 1P2T/2P2T/3P2T/4P2T
Approval (UL/VDE7CSA) on V3 Micro Switch

Mechanical Characteristics
Winding Angle Clockwise
Moving Direction Counter-clockwise
Winding Angle 0 ~ 360°
Working Temperature 125°C Max
Winding Torque 20Ncm ~ 40Ncm
Rewinding Torque 10Ncm ~ 30Ncm
Release Torque 0.1Ncm ~ 0.4Ncm
Timing Accuracy ± 5% of full scale on some version
Mechanical Life
Expectancy
>10,000 operations
Resistant Torque
for winding
>200Ncm
Alarm Output 0 ~ 3 sec alarm with 20Hz min.
Weight 115g


Versions
Time Duration 10Min./15Min./20Min./30Min./45Min./60Min./90Min./120Min.
