GEARED MOTOR

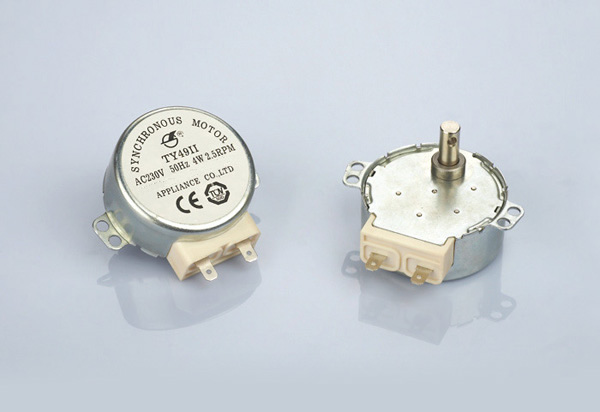

PERMANENT-MAGNETIC SYNCHROMOTOR

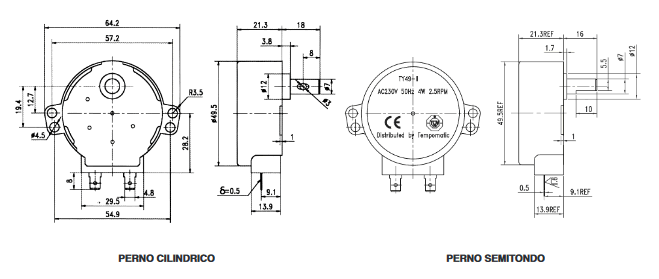

Type CTY49

Motore riduttore sincrono


GENERAL FEATURES:

  • Power supply: 110-120V / 220-240V
  • Power frequency: 50Hz/60Hz
  • Operating temperature: -10°C +125°C
  • Power: 4W
  • Output torque (5r/min): 44,1 Ncm
  • Insulation resistance: 100MΩ
  • Rotation: CW, CCW
  • Speed: from 2,5 to 60 RPM/min.
  • Approval: TUV - UL - CE
