MOTORI GIRARROSTO

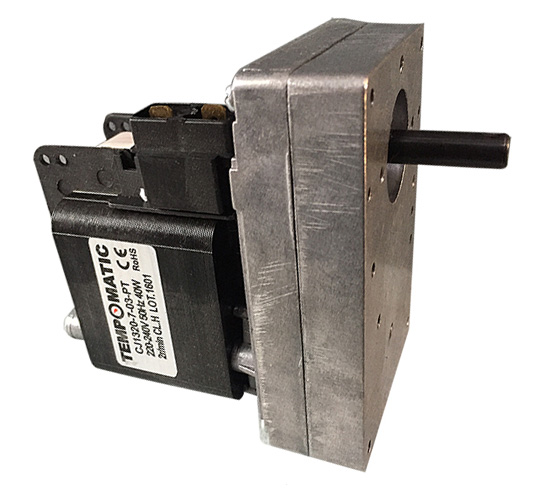

Motore grill
CJ-1320 40W



DATI TECNICI

1. TYPE SHADED POLE TYPE     INDUCTION MOTOR
2. RATING:
    2-1 VOLTAGE: AC220-240V 50Hz
    2-2 PHASE: 1Ø
    2-3 POLE: 2P
    2-4 RATING: CONTINUOUS
3. NO LOAD CHARACTERISTICS:
    3-1 CURRENT I0:        0.29A±15%
    3-2 INPUT POWER P0: 32W±15%
    3-3 SPEED n0:            2±0.3r/min
    3-4 STARTING VOLTAGE: 176V
4. INSULATION:
    4-1 INSULATION CLASS: H
    4-2 INSULATION RESISTANCE:           50MOHMS WITH DC500V           MEGGER
    4-3 DIELECTRIC STRENGTH:           AC1800V FOR 1 SECOND
          (CUT-OFF CURRENT:3mA)
5. NOISE: LESS THAN 50 dB(A) AT     30cm AWAY FROM THE MOTOR
6. CONSTRUCTION:
    6-1 DIRECTION OF ROTATION IS           C.W. SEEING FROM THE OUTPUT           SHAFT SIDE
    6-2 THE END PLAY: NOT MORE THAN           1.0mm
