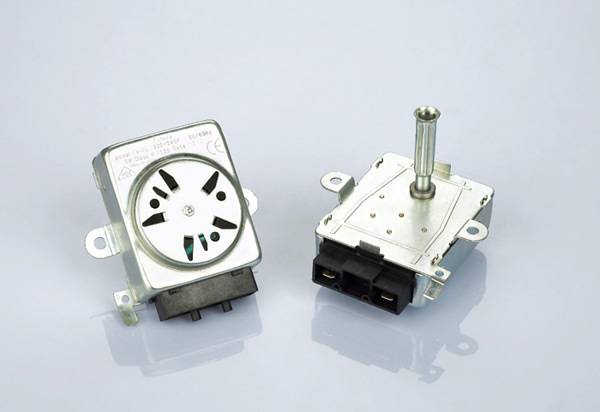

GRILL MOTOR

Type: T-163=5W




GENERAL FEATURES:

  • Rated voltage: 110/220-240V
  • Frequency: 60/50Hz
  • Temperature: 125°C
  • Input power: 5W
  • Output speed: 2.4 RPM (110V)/2 RPM (220-240V)
  • Output torque: at 125°C 176Ncm
  • No-load starting voltage: 84/154V
  • Insulation resistance: =100MO
  • Noise: =45dB
  • Insulation class: H
  • Rotation direction: CW/CCW

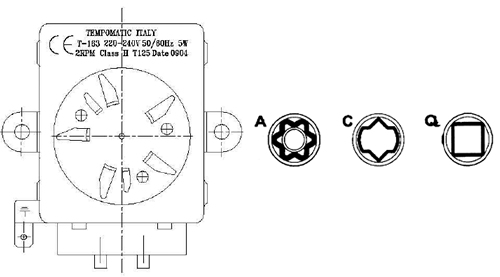

  • Special shaft on request.
