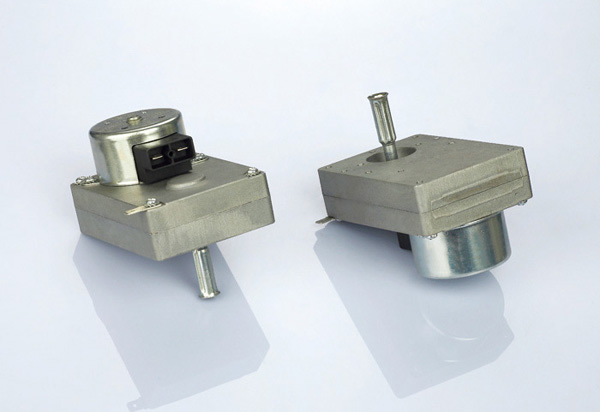

GRILL MOTOR

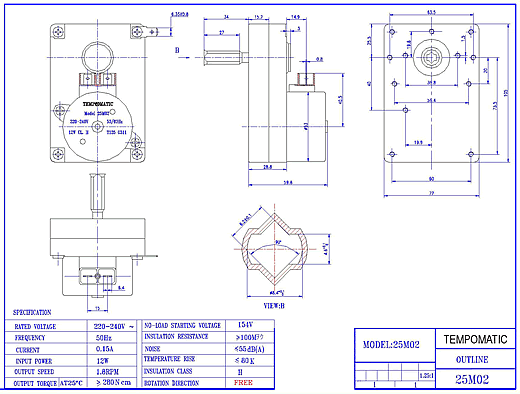

Type: 25M02

grill motor - barbecue motor

SPECIFICATION

Rated voltage: 110/220-240V
Frequency: 50Hz
Current: 0.15A
Input power: 12W
Output speed: 1.8 RPM
Output torque: at 25°C =280Ncm
No-load starting voltage: 154V
Insulation resistance: =100MO
Noise: =45dB(A)
Temperature rise: =80K
Insulation class: H
Rotation direction: free
