MICROINTERRUTTORI

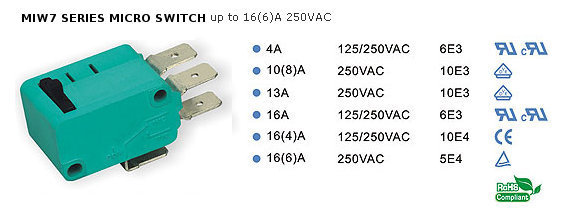

MICROINTERRUTTORE BIPOLARE - MIW7

Microinterruttore bipolare - MIW7




Specification:
Contact Resistance:
Initial - Less than 0.02 Ω
After expected life-less than 0.2 Ω
Insulation Resistance:
500VDC, 500MΩ Min
Dieletric Strength:
1500VAC for 1 minute
Operating Temperature:
-25°C to 125°C
Electrical Life:
>=100000 Cycles
