PUSH BOTTON MICROSWITCH

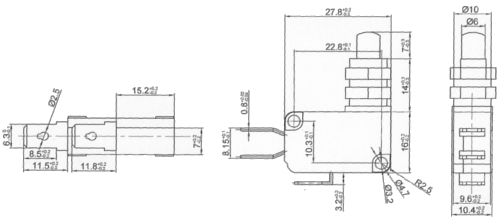

Push botton microswitch KW7 series MI385METC
16(4)A 250VAC
20A 125VAC







KW7 SERIES MICROSWITCH



Specification:

Contact Resistance
:
Initial-Less than 0.02

Insulation Resistance:

500VDC, 500m Min

Dieletric Strenght:

1500VAC for 1 Minute

Operating Temperature:

-25°C to 125°C

Electrical life:
>=100000Cyles
