MICROINTERRUTTORI

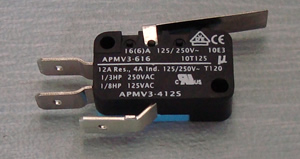

SERIE MI83161-X
Microinterruttori



Item
Value
Operating Speed
0.1mm~1m/s(Related with actuator forms)
Operating Frequency
Mechanical 60 cycles/min; Electrical 30 cycles/min
Insulation Resistance
100 M Ω (500VDC)
Contact resistance
<=30m Ω (Initial value)
Test
Voltage
Between terminals of the same
polarity
AC2000V,50/60Hz,1min
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts
Vibration resistance
10-55Hz,1.5mm Double amplitude
Shock Resistance

Destruction:

OF>0.5N:1000m/s 2(approx.100G)max
OF<=0.5N:500m/s 2(approx.50G)max
Malfunction:

OF>0.5N:300m/s 2(approx.30G)max
OF<=0.5N:200m/s 2(approx.20G)max

Life Expectancy
Mechanical>=5000000 cycles
Electrical>=50000 cycles
Degree of protection
IEC IP40
Degree of protection against electric shock
Class I
PTI (Tracking Resistance)
175
Ambient air temperature
125°C 60%RH below(No ice and dew)
Ambient air humidity
85% RH below(about +5~+35°C)
Weight
Approx.5.95g(No lever)

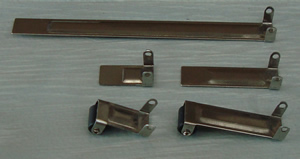

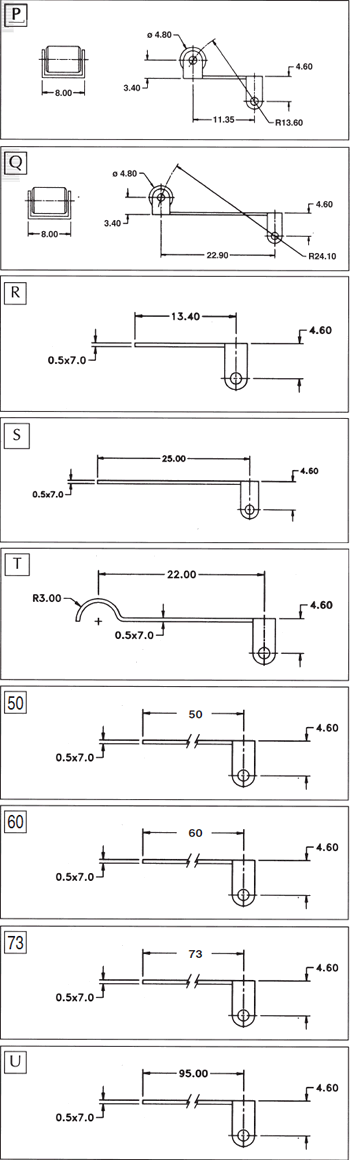

Kit di 5 leve: P,Q,R,S e 73, art. KITLEV-X

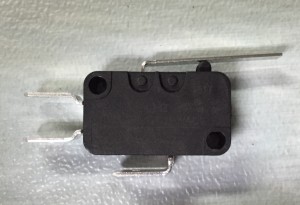

Kit microinterruttore con leva S, 27 mm montata, art. MI83161LEV-X

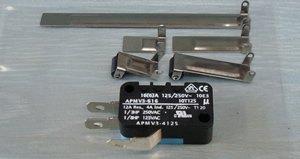

Kit microinterruttore con faston 6,3mm e 5 leve P,Q,R,S e 73, art. MI83161KIT-X

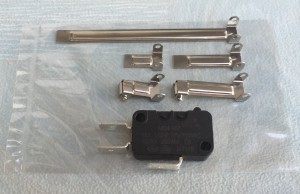

Kit microinterruttore con faston 4,8mm e 5 leve P,Q,R,S e 73, art. MI83161F48KIT-X
