TERMOSTATI ELETTRONICI

TYPE: K400-3


FEATURES:
  • Imput voltage: 200÷240 VAC; 45÷55;Hz
  • Storage temperature: -20°C÷80°C
  • Temperature display range: 0°C a 250°C

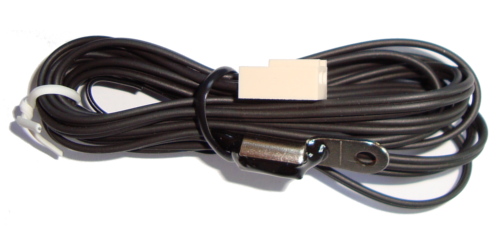

  • NTC Thermistor is mounted in a metallic bracket with 1,5 m cable
  • Temperature is measured and update once every 5 seconds
  • Temperature accuracy:
    ± 0,7°C a 100°C
    ± 4% (max) within 0°C to 250°C
  • Dimensions: 66x55x41,8 mm.
  • Hole in the panel mm. 66x49. Depth 39 mm.
  • Available also with 300°C resistant sensor Mod.K400/300

OPERATION:
  • When the unit is powered up, OFF mode is initiated
  • Press "MODE" to select the desired operating mode
    OFF-MODE
  • Temperature is measured once every 8 seconds
  • The measured temperature and "OFF" are displayed alternatively
  • Relay is always switched OFF
    AUTO-MODE
  • Temperature is measured once every 8 seconds
  • The measured temperature and "AUT" are displayed alternatively
  • Relay is always switches ON if the temperature is 1°C higher than the setting value
  • Relay is always switched OFF if the temperature is 1°C lower than the setting value
  • The review the setting:
    - Press "SET" once. The setting goes flashing in the LED
    - Press "UP" or "DOWN" to change the setting by 1°C/step
    - Press and hold "UP" or "DOWN" to set in the fast mode
  • When no keys has been pressd for 5 seconds, it returns to AUTO
    ON-MODE
  • Temperature is measured once every 8 seconds
  • The measured temperature and "ON" are displayed alternatively
  • Relay is always switched ON

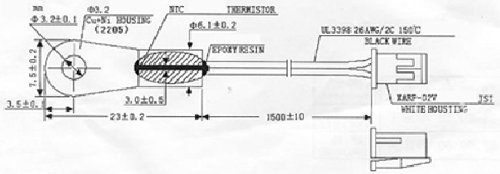

SENSOR 150

SENSOR 150°C

ITEM
SIGN.
CHAR.
UNIT
TOL.
B-value
B25/50
3900
K
2%
Resistance
R25
100.0
3%
Thermal time constant (in water)
Г
10
Sec
Circa
Operating temp.
Tw
-30~+150
°C
Dissipation constant (in air)
δ
3.2
mW/°C
Min
Dielectric strength
A.C. 1500V, 1 min (in water)
No flash over
Insulation resistance
D.C. 500V (in water)
I.R.
100
Min

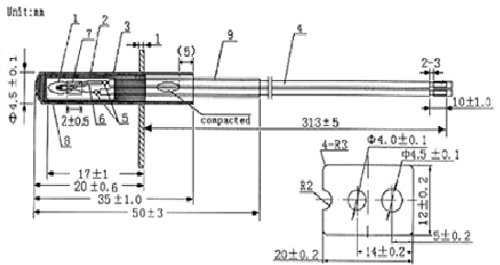

SENSOR 300

SENSOR 300°C

1.Zero power resistance: R200=1.000KO±5%, R100=13.51KO±5%
2.B-value: B100/200=4537K±3%
3.Operating temperature range: -20°C~+300°C (only point thermistor)
4.Insulation resistance: in air 500VDC, 500MO min
5.Dielectric strength: in air 2000VDC, 15 sec., no flash over (leak current: 0.5mA max)
6.the mouth of the stainless steel case should be compacted
7.all parts are Rohs conform



MATERIAL & SIZE
NO.
NAME
Q.TY
REMARKS
Ø2.5mm – silicon coated glass-fiber (27mm)
9
Protected tube
1
White
10L – Teflon tube (22mm)
8
Protected tube
1
Clear
23L – Teflon tube (2mm)
7
Protected tube
1
Clear
TP1 GI-030 PI tube (12mm)
6
Protected tube
2
Clear
Copper plating zinc
5
Splice band
2
UL3068 24AWG 150°C – single braided silica gel wire
4
Lead wire
2
Blue
Ø4.5X35mm – stainless steel case
3
Protected case
1
Stretch forming
Silica gel
2
Silica
Red
TG41A214J-200P/100P
1
NTC thermistor
1
