SECURITY THERMOSTAT

Type: 301
Snap-action thermostat, Milano
CHARACTERISTICS
301 series snap-action thermostat is a kind of miniature hermetically sealed bimetal thermal protector. It is of singlepole single-throw structure and works under resistive load.
The bimetal disc will snap instantly when subjected to certain temperature to cause quick switching action of contacts via mechanical function and to interrupt or complete a circuit.
This device has the advantage of fixed working temperature needed no adjustment, reliable and agile action, long service life as well as less radio disturbance.

APPLICATION
301 series is in wide use in a great variety of compact type home appliances, such as coffee makers, toasters, microwave ovens, etc.

BASIC TECHNICAL PARAMETER
  • Rated current: 10A, 16A (resistive)
  • Type of disconnection; Micro-interruption
  • Resistance between terminals belove 50mΩ(numeric m&m meter, by volt ampere standard, DC5V1A)
  • With a DC 500V megger, borne DC 500V, the tested value is over 100MΩ
  • Dielectrid Strenght: Parts between electriferous components and non-electriferous ones can’t bear 2000V.
    50Hz Ac current, which is nearly sine wawe, for one minute as bearing test. Resulted no breakdown, no flashover.
  • Class of temperature characteristics: normal close, normal open, manual reset.

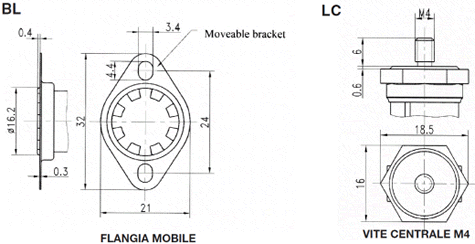

TYPE AND DIMENSION OF COVER AND TERMINAL

STANDARD FIXING


SPECIAL FIXING
Click to enlarge

TERMINAL TYPE


DIFFERENTIAL

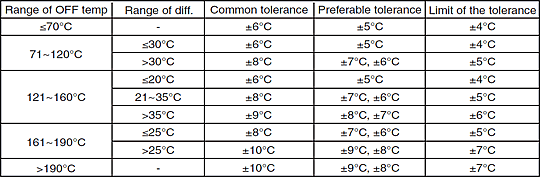

OFF TOLERANCE


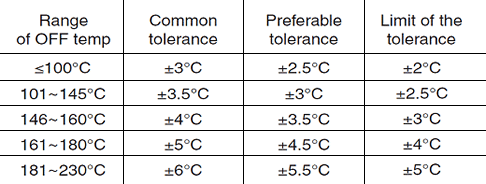

ON TOLERANCE
Click to enlarge
